VCP LAB
Products
VCPLab enables you to complete your measurements and controls professionally and efficiently, under the supervision of a laboratory technician.
For cable samples with an external diameter of up to 40 mm (1.57″).

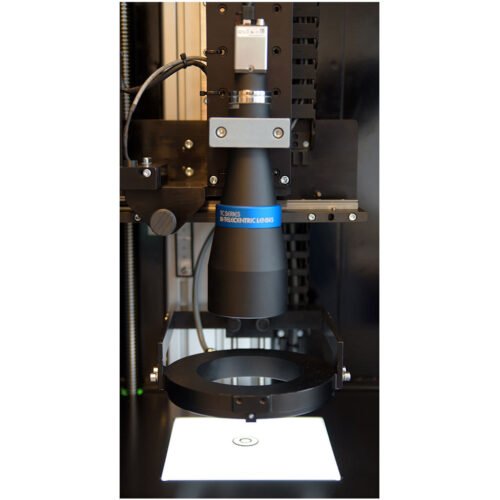

The VCPLab cable meter is a camera-based system for measuring cable geometries from insulation and conduits. The integrated high-resolution sensors allow very accurate measurements of both very thin samples with an external diameter of less than 1 mm (0.04″) and cable sheaths with an external diameter of up to 40 mm (1.57″).
Device details
- Robust casings against extraneous light
- Control unit
- Semi-automatic focusing and illumination
- Safe from impacts and vibrations
- Light transmitted almost without shadows
- Optimum system status for lighting, optics and camera
- Possiblity of measurements with 2 cameras
- Adjustable working distance for 2D measurements in laboratories
- Highly accurate measurement thanks to high-resolution sensors
- Standardised individual components
- Very simple measuring procedure
- Measurement according to IEC 60811-201, -202 and -203
- Suitable software FMC-3 and CAQ-System ProCable available
Technical details
- Dimensions (W X L X H) 1150 x 380 x 1070 mm 45.27 x 14.96 x 42.13 Inch
- Weight 75 kg / 165 lbs
- Voltage 100 – 240 V / 50 – 60 Hz
- Input Power max. 100 Watt
- Resolution 4 mm width = 4 μm/Pixel 40 mm width = 6 μm/Pixel
- LED lighting Camera*1-2 Cameras
- Measuring Range 0 up to max. 40 mm (1.57“) Outer diameter
