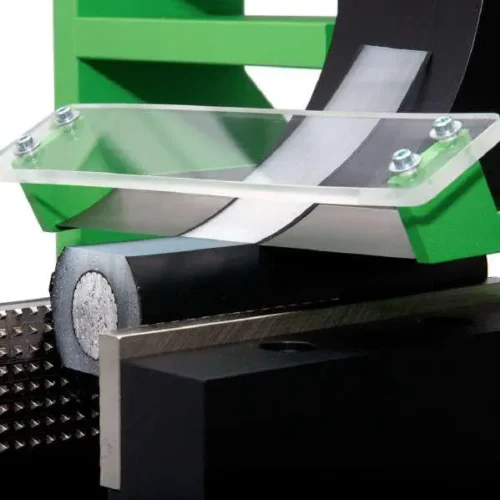

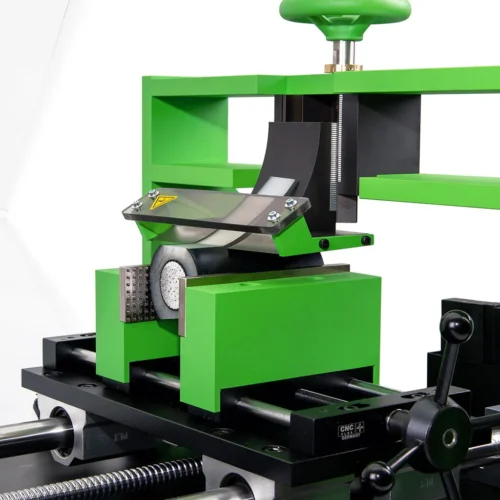

Spitting Cutter SC-PE

CABLE SAMPLE PREPARATION FOR HEAT ELONGATION AND TENSILE TESTING IN ACCORDANCE WITH STANDARDS

Device details:

  • The device complies with IEC 60811 -501, -507 (heat elongation test, tensile test)
  • Practical electrical device for testing materials in laboratories
  • Developed to cut samples according to IEC 60811 with a thickness between 0.8 and 2.0 mm (0.04″–0.08″)
  • Especially for hard materials

Technical details:

  • Dimensions (WxDxH)
    760 x 500 x 500 mm
    29,92 x 19,68 x 19,68 inches
  • Weight
    61,5 kg / 135,6 lbs
  • Supply voltage
    100 – 240 V / 50 – 60 Hz
  • Input power
    max. 100 Watt
  • Material
    Aluminium, stainless steel, plastic housing
  • Hardened stainless-steel blade
  • Ø – Sample cable max. external diameter 130 mm (5.11 “)
  • Cutting thickness set according to IEC 60811 -501, -507 adjustable
